Overview
Industrial & Goods Elevators
Industrial & Goods Elevators
A Hydraulic Goods Lift is a heavy-duty vertical transportation system designed to efficiently move freight and materials between floors. Built for durability and safety, it is ideal for industrial or commercial use where regular movement of goods is required. Unlike traction lifts, hydraulic lifts use a fluid-based lifting mechanism, ensuring robust performance for heavy loads, even in low-rise structures.
Aakhand’s hydraulic freight elevators come with dust-proof features, customizable cabin sizes, and a range of load capacities, ensuring efficient, clean, and safe handling of goods. They are especially useful in environments where cleanliness and material flow are priorities.
Technical Reference:
Core Features
- Hydraulic Drive System : Uses hydraulic fluid and piston movement for lifting—ideal for short to mid-rise installations.
- Dust-Proof Cabin : Clean material handling for food, pharma, or sensitive goods.
- Custom Cabin Sizes : Configurable depending on goods dimensions and building space.
- High Load Capacity : Ranges from 500 kg to 4000 kg depending on requirements.
- Low-Speed Operation : Suitable for material handling—not passengers.
- Compact Machine Room : Can be installed nearby or adjacent to the shaft.
- Efficient Pit & Overhead Design : As low as 1600 mm pit and up to 5200 mm overhead.
| Load (Kg) | Car Size (mm) | Lift Well (C mm) | Clear Opening (E mm) | Wall Opening Auto-Door (mm) | Wall Opening Collapsible (mm) | Machine Room (G mm) | Pit Depth (H mm) | Overhead Height (mm) | Speed (m/sec) |
|---|---|---|---|---|---|---|---|---|---|
| 500 | 1200 x 1200 | 1850 | 800 x 2000 | 1000 x 2150 | 1150 x 2225 | 2700 | 2500 | 1600 | 0.20 |
| 1000 | 1700 x 1600 | 2350 | 1200 x 2000 | 1500 x 2150 | 1650 x 2225 | 3500 | 1600 | 4600 | 0.20 |
| 1500 | 2000 x 2000 | 2550 | 1500 x 2000 | 1500 x 2150 | 1650 x 2225 | 4000 | 1600 | 4600 | 0.25 |
| 2000 | 2000 x 2500 | 2950 | 1500 x 2000 | 1500 x 2150 | 2000 x 2225 | 4000 | 1600 | 4600 | 0.25 |
| 2500 | 2000 x 3000 | 2950 | 1500 x 2000 | 1500 x 2150 | 2000 x 2225 | 4000 | 1600 | 4600 | 0.25 |
| 3000 | 2000 x 3000 | 2950 | 1500 x 2000 | 1500 x 2150 | 2000 x 2225 | 4000 | 1600 | 4600 | 0.30 |
| 3500 | 2500 x 3000 | 3400 | 2000 x 2000 | 2300 x 2150 | 2600 x 2225 | 4500 | 2500 | 5200 | 0.30 |
| 4000 | 2500 x 4000 | 4450 | 2000 x 2000 | 2300 x 2150 | 2600 x 2225 | 4500 | 2500 | 5200 | 0.35 |
Advantages of Aakhand Hydraulic Goods Lift:
- Durability : Built for industrial use, handles tough conditions with ease.
- Efficiency : Reduces manual effort, speeds up loading/unloading.
- Customization : Tailored for various load sizes and shaft configurations.
- Low Maintenance : Simpler mechanical system than traction lifts.
- Safety : Equipped with manual lowering, emergency stop, and mechanical locking.

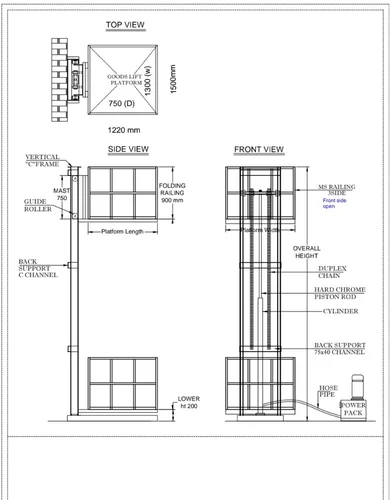

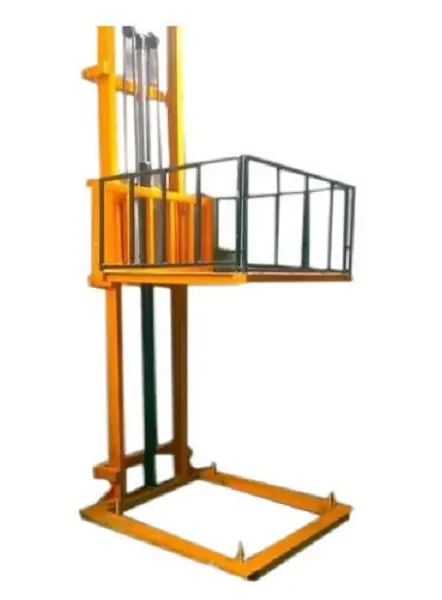

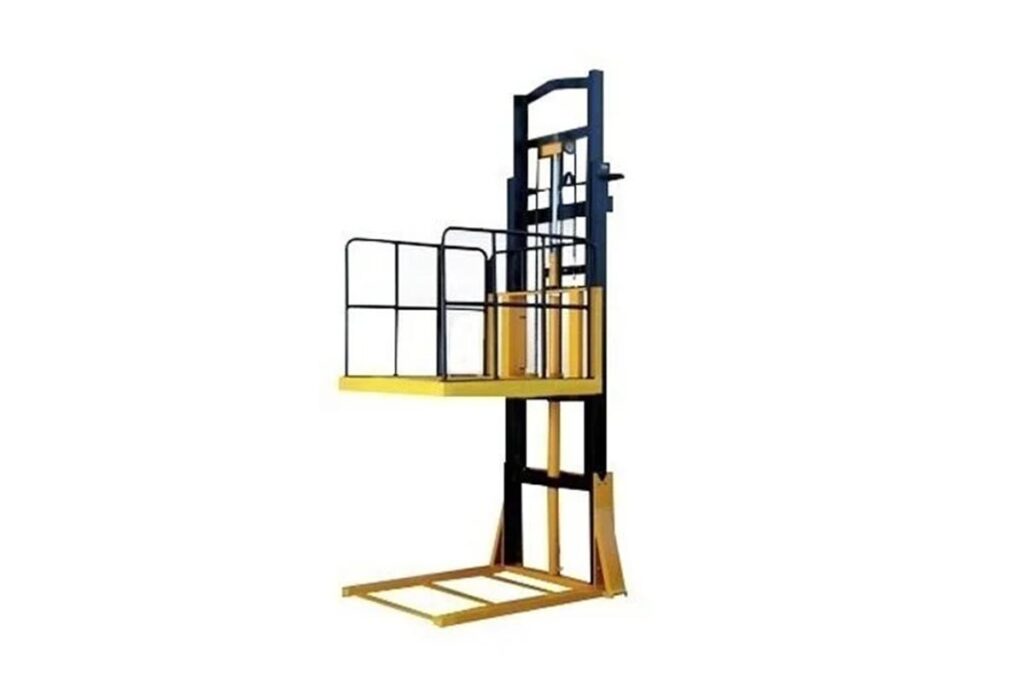

Single Mast Goods Lift
(Lightweight, Compact & Cost-Effective Material Handling Solution)
A Single Mast Goods Lift is a vertical material handling system designed for low to medium-weight load transport in warehouses, factories, showrooms, and small commercial units. It operates on a single vertical mast structure and is typically used where space is limited and floor-to-floor goods movement is essential.
These lifts are ideal for small-scale operations that require reliable yet cost-effective solutions without the need for elaborate shaft constructions or high-speed systems.
Core Features:
Design Type
Simplex single mast structure made from C-channel section Supported by heavy-duty deep-grooved guide rollers and forks Lifted via double chain & pulley system
Hydraulic Mechanism
Vertical-mounted hydraulic unit Single-acting honed hydraulic cylinder with hard chrome plated piston
Technical Specifications:
- Capacity : 500 kg
- Platform Size (W × L) : 900 mm × 900 mm
- Lift Height : 10 feet
- Lift Mode : AC operated hydraulic system
- Power Pack : Hydraulic AC
- Mast Type : Single mast
- Entry/Exit : Single side (opposite to mast)
- Lip : Optional (available at extra cost)
- Levels : G+1 (Ground + First Floor)
- AC Motor for Power Pack : Compatible with Single-phase or Three-phase
- Control Panel : CP at bottom & top stages / Manual/Automatic options available
- Platform Doors & Side Shields : 2 sides, 900 mm rails / One swing gate with mechanical lock
Hydraulics Include:
- Safety valve
- Pressure relief valve
- Solenoid valve
- Control valve
- Pressure gauge
- Oil level indicator
- Monoblock
- Breather
- Hydraulic pump
