Overview
Residential Elevators
Residential Elevators
Aakhand Elevators’ Residential Lifts are designed to improve vertical mobility in multi-storey homes, apartments, and housing complexes. Built with a focus on safety, space optimization, energy efficiency, and ease of use, our lifts deliver everyday convenience while enhancing the quality of life in residential buildings.
Whether you’re a builder, a housing society, or a flat owner, our solutions are customized to fit compact shafts and minimize structural changes — making them perfect for both new and existing buildings.
Comfort, Safety & Style in Every Floor
Comfort, Safety & Style
in Every Floor
Aakhand Elevators brings modern, space-efficient Residential lift solutions designed to simplify movement and upgrade everyday living. Whether it’s a duplex, bungalow, apartment, or an existing home, our lifts fit seamlessly into your space, with minimal civil work and maximum functionality.
Key Features & Benefits
Quick & Easy Installation
Installed within 7–10 days without deep pits, machine rooms, or overhead space. Plug-and-play setup for hassle-free integration.
Compact & Customizable
Choose from compact or spacious cabin sizes tailored to your home layout. Designed to blend with modern interiors without structural compromise.
Smooth Performance
✦ Single-phase power operation
✦ Consumes ZERO electricity while descending
✦ Operates with minimal noise and vibration
Safety First — 4-Layer Protection
✦ Battery backup for power cuts
✦ Sensor-based obstruction protection
✦ Door lock safety
✦ Overspeed & buffer safety systems
Energy-Efficient & Eco-Friendly
✦ Green elevator design using less power
✦ No special power license required
Low Maintenance Design
✦ Self-supporting shaft
✦ Fewer mechanical components reduce service costs
Traction MRL Lift System
The Traction MRL (Machine Room-Less) Lift is a modern, space-saving elevator solution designed specifically for mid-rise residential buildings such as flats and apartments. Unlike conventional systems, it doesn’t require a separate machine room, which reduces construction costs and optimizes usable space. Powered by a gearless traction motor and guided by advanced safety and control technologies, this lift ensures smooth, efficient, and silent operation—ideal for residential comfort.

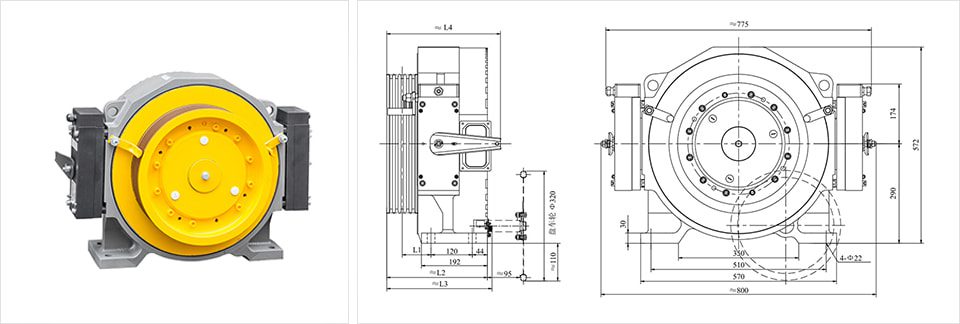

The new Gearless with all power of Technology
Technical Reference:
General Specifications
- Type : Gearless Traction, MRL (Machine Room-Less)
- Drive System : In-line gearless traction system with VVVF (Variable Voltage Variable Frequency) drive
- Load Capacity : 1000 lbs (approx. 454 kg)
- Speed : 40 ft/min (0.2 m/sec)
- Maximum Travel Height : Up to 50 ft (approx. 15.2 meters)
- Maximum Stops : 6
- Pit : Minimum 9-1/4" (235 mm) for swing door setup
- Minimum Floor Distance : 10" (255 mm)
- Overhead Clearance : Typically 96" (2440 mm) for standard cab height
- Power Supply : 240 VAC, single phase, 60 Hz
Drive System & Components
- Motor : High-efficiency gearless traction motor with low RPM for quiet operation
- Suspension System : Two heavy-duty roller chains for balanced lift movement
- Guiding : 8-ft steel elevator guide rails
- Control : Advanced digital control panel with VVVF technology for precise leveling and energy efficiency
- Braking : Electrically released spring-loaded braking system
- Fall Protection : Integrated mechanical fall arrest system
Standard Safety Features
- Emergency manual lowering system
- Slack/broken chain detection and braking
- Top and bottom limit switches
- Automatic car leveling system via advanced sensors
- Emergency light and alarm system in case of power failure
- Door interlocks for added user safety
- UPS backup for emergency car lowering during power outages
- Overload protection and fault diagnostics system
